Product details

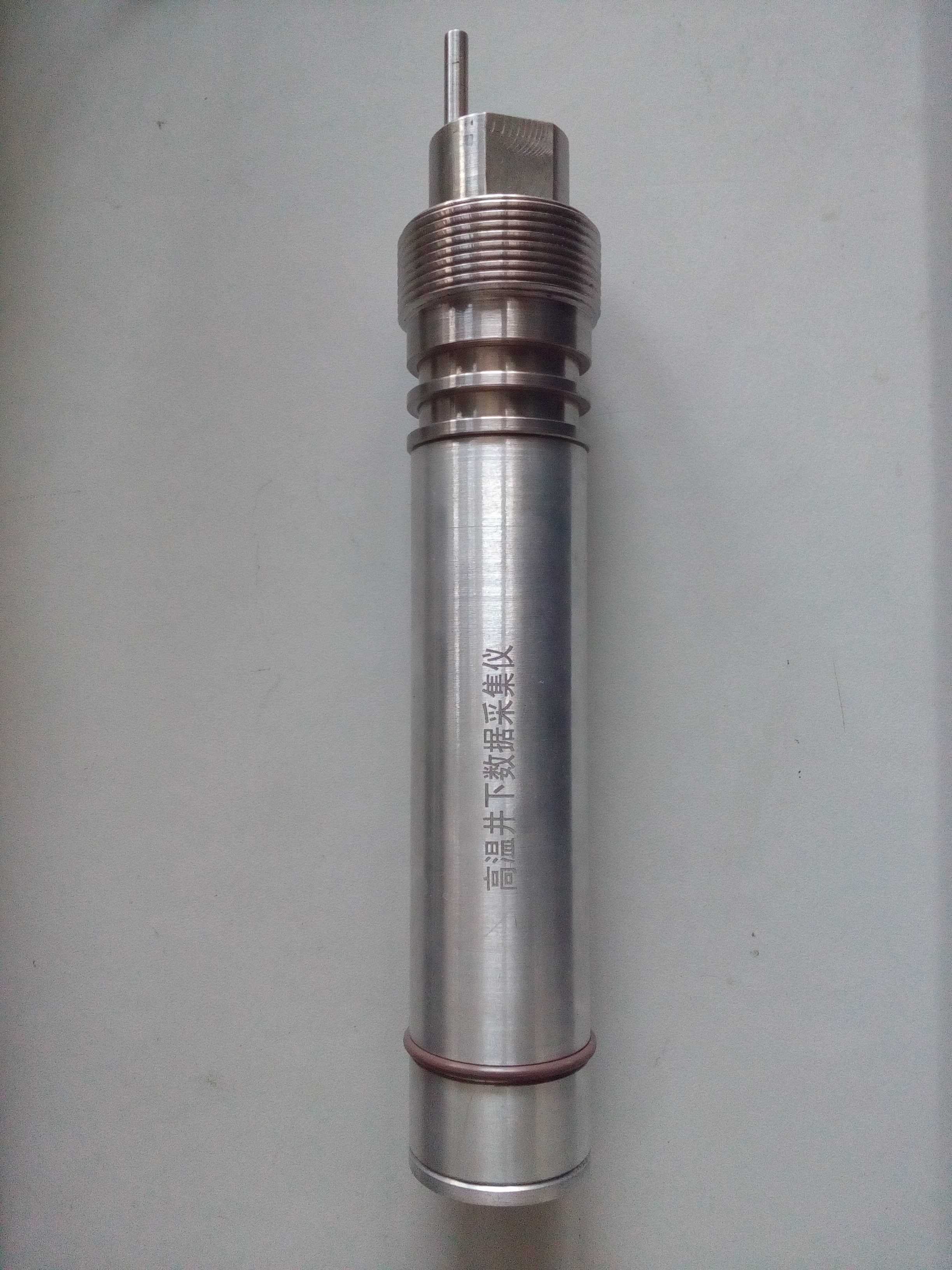

Downhole Data Acquisition Instrument is used to monitor the temperature and pressure .

It can display and store all the parameters and transmit the data to the controm center by network or wireless network.

It can alarm and interlocked protection when abnormality occurs.

Technical indicators:

Measuring parameters: pressure、 temperature and tank temperature of instrument

Pressure measuring range: 0 MPa to 70 MPa

Pressure measurement error: ≤±0.25%

Resolution of pressure: 0.01 MPa

Temperature measurement range: 0 ℃ ~ 200 ℃

The temperature measurement error: ≤±0.5%

Resolution of temperature: 0.1 ℃

Storage capacity:     32704 sets

Sampling interval setting: 10 sections

Sampling rate: 1s(min、h) ~ 59s(min、h) , can be set

Communication interface: USB

Power supply: 3.9 V high temperature lithium battery pack (150 ℃)

Dimension: Ф 41mm× 250 mm
