High Temperature Real-time Testing System

Product features

Reasonable structure

Stable performance

Easy maintenance

Energy-efficiency


Product details



High temperature real-time testing system is used to detect and display the temperature and pressure under well in real-time mode.


Technical parameters:

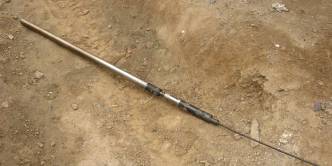

Downhole instrument:


1、diameter : Φ 40mm


2、length: 750 mm


3、working pressure: 25 MPa


4、pressure measuring range: 0 MPa ~ 21 MPa


5、temperature  measuring range: 0 ℃ ~ 360 ℃


Ground-based instruments:


1、pressure measuring range: 0 MPa ~ 30 MPa;  accuracy: ±0.5% FS


2、temperature measuring range: 0 ℃ ~ 400 ℃;  accuracy: ±0.5% FS


3、depth measuring range: 0 m ~ 9999.99 m;  accuracy: ±0.5 m


4、speed measuring range: 0 m/min to 99.9 m/min;  accuracy: ± 0.1%






Enquiries:

Please contact us with or send E-mail to: zhongruitai2012@126.com
